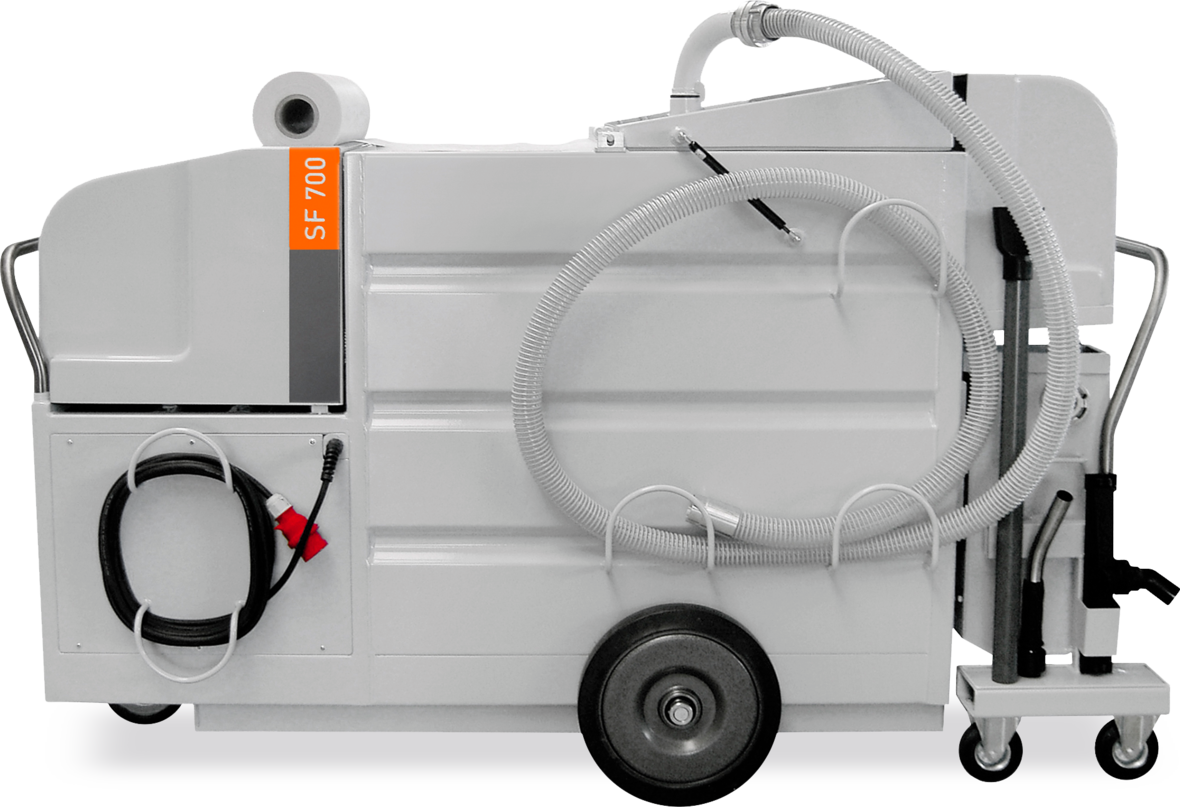

SF 700
Performance characteristics
| Capacity | 700 litre |
| Filtration by means of filter nonwoven | |
| Suction capacity | 320 l/min |
| High-pressure (HP) unit | |
| Mechanical “tramp oil stopper” |
Advantages
- Perfect emulsion maintenance for individually filled machines
- Emulsion change can be performed in very short time
- Can be used for metalworking fluids or cutting-machining oils
- 4 functions in one machine:
- Extraction of the complete contents
- Filtering of the liquid
- Cleaning of the emulsion tank and machine interior with the help of the HP lance
- Extraction of swarf and grinding sludge
Details
- Cleaning opening at the rear 420x150 mm
- CSE wheels, wide tyres
- Electric drive with battery and charger
- Special cleaning hose
- Cleaning door • Drawbar
- Special colour
| Measurements and weight | |
|---|---|
| Empty weight | 560 kg |
| Length | 2,400 mm |
| Width | 920 mm |
| Height | 1,600 mm |
| Power | |
| Suction power | 320 l/min |
| Electrical | |
| Electrical connection | 7/16 kW/A |
| Further values | |
| Parts in contact with media manufactured in stainless steel | No |
| Suction height | 3 m |
| Max. temperature | 50 °C |
| pH value | 5 - 9,5 pH |
| Noise level | 78 dB (A) |
