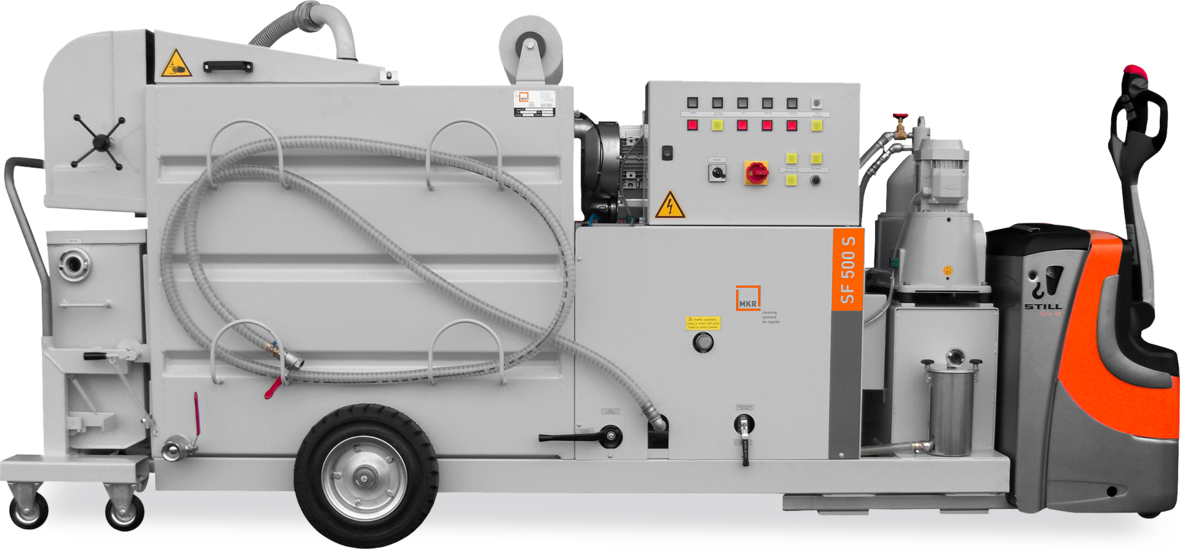

SF 500 S
Performance characteristics
| Capacity | 500 litre |
| Disc stack centrifuge can be optionally used in the bypass | |
| Suction capacity | 250 l/min |
| High-pressure (HP) unit |
1. Filtration stage by means of filter nonwoven
2. Filtration stage by means of 3-phase disc stack centrifuge (particle rating > 2µm)
Advantages
- Combination of vacuum & filter trolley and disc stack centrifuge
- Perfect emulsion maintenance for individually filled machines
- Emulsion change can be performed in very short time
- Can be used for metalworking fluids or cutting-machining oils
- 4 functions in one machine:
- Extraction of the complete contents
- Filtering of the liquid
- Cleaning of the emulsion tank and machine interior with the help of the HP lance
- Extraction of swarf and grinding sludge
Details
- Optional capacity 700, 1000 litre
- Cleaning opening at the rear 420x150 mm
- CSE wheels, wide tyres
- Electric drive with battery and charger
- Special cleaning hose
- Cleaning door
- Drawbar
- Special colour
| Measurements and weight | |
|---|---|
| Empty weight | 630 kg |
| Length | 2,700 mm |
| Width | 920 mm |
| Height | 1,500 mm |
| Power | |
| Throughput | 500 l/h |
| Suction power | 250 l/min |
| Electrical | |
| Electrical connection | 9/16 kW |
| Further values | |
| Parts in contact with media manufactured in stainless steel | No |
| Suction height | 2 m |
| Max. temperature | < 50 °C |
| Separation particle size | > 2 µm |
| pH value | 5 - 9,5 pH |
| Noise level | 78 dB (A) |
