TB 250

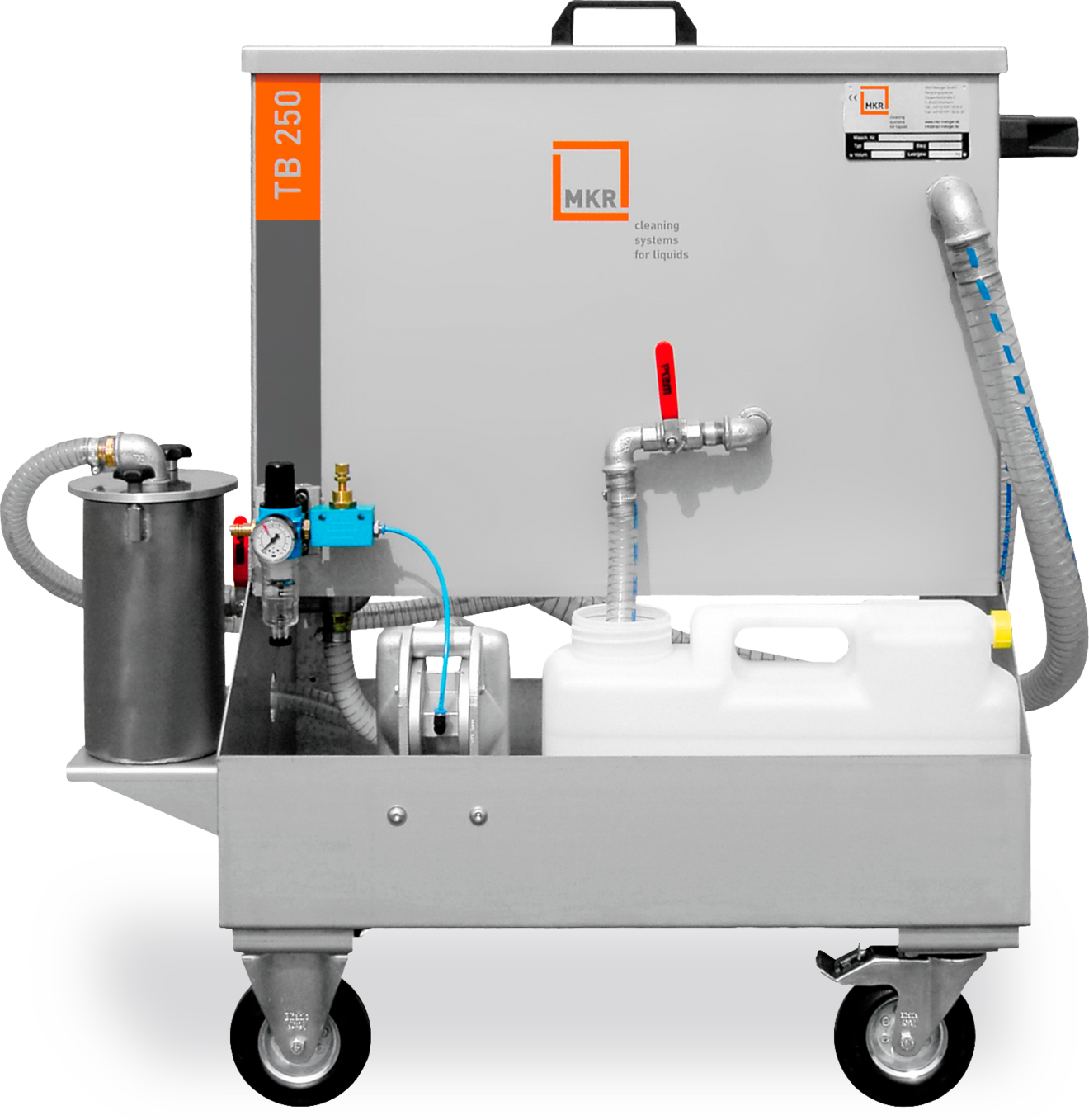

Der mobil oder stationär einsetzbare Fremdölabscheider TB 250 von MKR Metzger arbeitet nach dem Koaleszenzprinzip. Bei einer Durchsatzleistung von 250 l pro Stunde lassen sich Fremdöle aus Waschmedien oder Kühlschmierstoffen wirkungsvoll abscheiden.
Der mobil oder stationär einsetzbare Fremdölabscheider TB 250 von MKR Metzger arbeitet nach dem Koaleszenzprinzip. Bei einer Durchsatzleistung von 250 l pro Stunde lassen sich Fremdöle aus Waschmedien oder Kühlschmierstoffen wirkungsvoll abscheiden.

Performance characteristics

Output 250 - 450 l/h
Prefilter 350µm
Stainless steel lamination stack(coalescer)
Self-priming pneumatic diaphragm pump
No electrical connection necessary
Controllable flow

Advantages

  • Extension of the visually good condition of the emulsion and odour improvement
  • Bypass cleaning without machine standstill
  • Reduction of disposal costs
  • Short payback period

Options

  • Extraction system Ø 100 mm, with telescope 65/100 stroke
  • Extraction system Ø 100 mm, with telescope 110/180 stroke
  • Free-floating extraction system
Article number 100486
Measurements and weight
Empty weight 65 kg
Length 1,000 mm
Width 560 mm
Height 1,000 mm
Power
Suction power 4 - 7,5 l/min
Further values
Parts in contact with media manufactured in stainless steel No
Suction height 3 m
Max. temperature < 60 °C
pH value 5 - 9,5 pH
