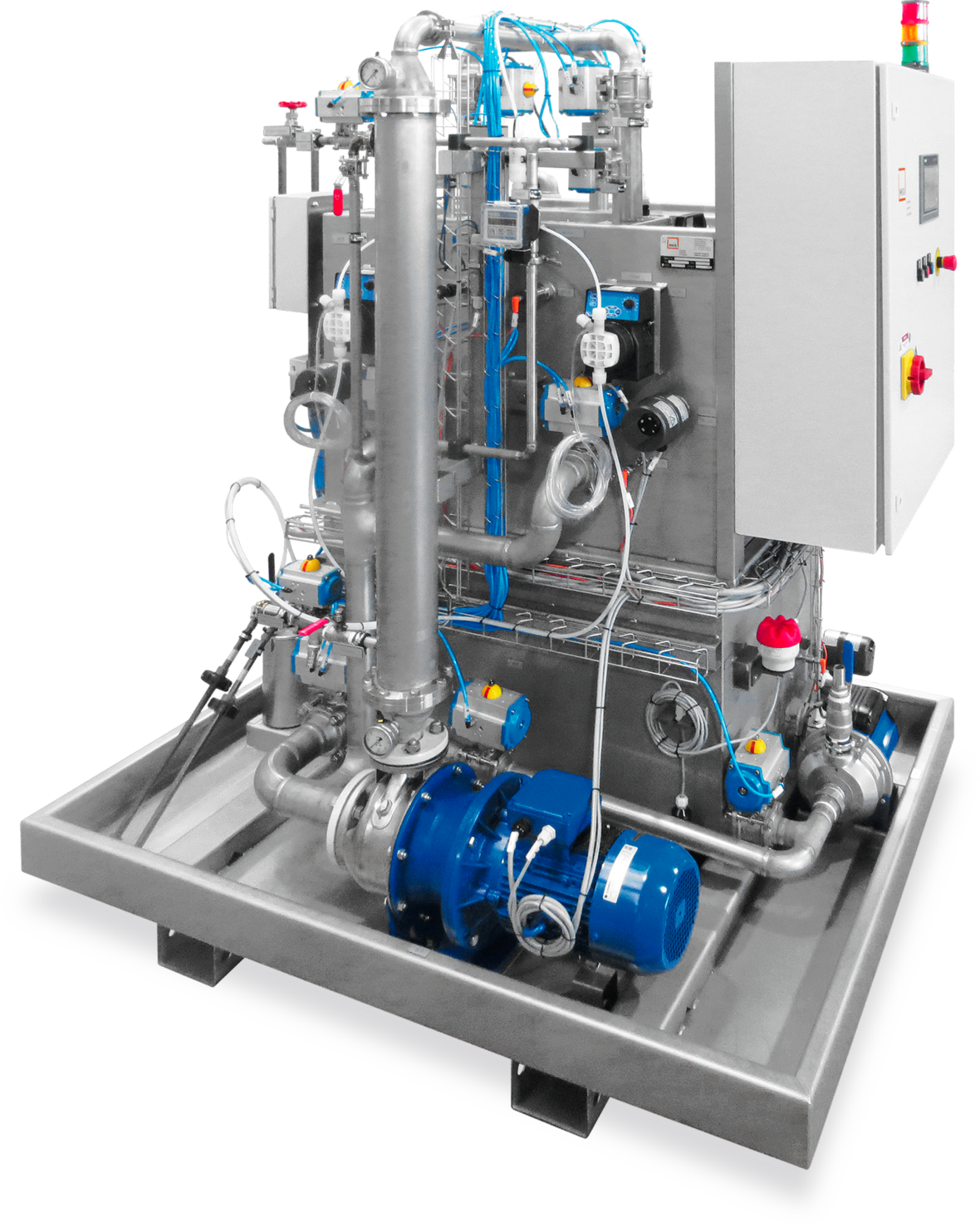

UC 2
Performance characteristics
|
Working tank approx. |
700 l |
|
Power |
100 - 600 l/h |
|
Rinsing tank approx |
75 l |
Advantages
- Extension of washing tank service life for part cleaning systems
- Separation of ultrafine particles, emulsions and oils from all aqueous liquids
- Extension of service life of pretreatment units
- Versions for manual/automatic operation
Details
- Automatic membrane cleaning for ultrafiltration UC 2
- Tramp oil separator for ultrafiltration UC 2
- Safety spillage tray
| Measurements and weight | |
|---|---|
| Empty weight | 770 kg |
| Length | 1,700 mm |
| Width | 1,350 mm |
| Height | 2,150 mm |
| Power | |
| Throughput | 100 - 600 l/h |
| Electrical | |
| 3-phase, with N and PE | 50 Hz |
| Electrical connection | 18/45 kW/A |
| Further values | |
| Parts in contact with media manufactured in stainless steel | No |
| Suction height | 2 m |
| Max. temperature | 65 °C |
| pH value | 4-13 pH |
