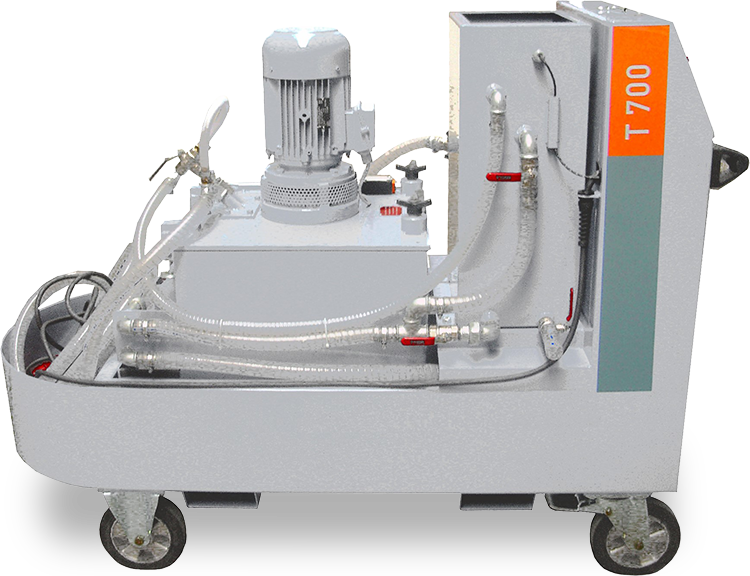

T 700
Performance characteristics
| Output | 800 - 3000 l/h |
| Prefilter | 350µm |
| Manual sludge removal | |
| Sludge insert capacity | 5 litre |
| 3-phase separation | |
| Separation of interfering tramp oils | |
| Compact design | |
| Controllable flow |
Advantages
- Very fine cleaning › 5 µm
- Without filter aids
- Semi-solid sludge produced
- Can also be used for heavy soiling/high contamination levels
Details
- Solenoid valve
- Extraction system Ø 100 mm, with telescope 65/100 stroke
- Extraction system Ø 100 mm, with telescope 110/180 stroke
- Free-floating extraction system
- Special colour
| Measurements and weight | |
|---|---|
| Empty weight | 405 kg |
| Length | 1,630 mm |
| Width | 680 mm |
| Height | 1,240 mm |
| Power | |
| Throughput | 800 - 3000 l/h |
| Electrical | |
| Electrical connection | 5/11 kW/A |
| Further values | |
| Parts in contact with media manufactured in stainless steel | No |
| Suction height | 3 m |
| Max. temperature | < 60 °C |
| Separation particle size | > 4 µm |
| pH value | 6,5 - 9,5 pH |
| Noise level | 78 dB (A) |
