Industrial Bath Maintenance in Parts Cleaning
Extend wash bath life and stabilize cleaning quality
In industrial parts cleaning, continuous bath maintenance is essential for stable and cost-effective production processes. Wash and degreasing baths remove oils, greases, coolants, particles and other residues from components. As operating time increases, these contaminants accumulate in the cleaning bath.
Without suitable bath maintenance, cleaning performance gradually declines. The consequences may include more frequent bath changes, inconsistent component cleanliness, increased chemical consumption, longer production downtime and rising disposal costs.
Wash bath maintenance covers all measures used to continuously clean and stabilize industrial wash and degreasing baths. The objective is to keep process fluids usable for longer, maintain consistent cleaning quality and reduce unnecessary bath changes.
MKR develops application-specific solutions for industrial bath maintenance – from mobile fluid maintenance, tramp oil separation and mechanical filtration to ultrafiltration with ceramic membranes.
In short: Industrial bath maintenance keeps wash and degreasing baths stable for longer and helps industrial cleaning processes operate more reliably.
Have your wash bath assessed
Would you like to extend the life of your wash or degreasing bath, reduce bath changes or improve the stability of your cleaning process?
MKR supports you in evaluating your application – from fluid analysis and technical system design to the appropriate solution for bath maintenance and process water treatment.
What is industrial bath maintenance?
Industrial bath maintenance includes all measures used to keep wash and degreasing baths stable, clean and effective for as long as possible.
Contaminants such as oils, greases, coolants, particles, fine solids and emulsions are removed or reduced from the cleaning fluid. Depending on the application and the required quality, the treated fluid can continue to be used or returned to the cleaning process.
What is the difference between bath maintenance and wash bath maintenance?
Bath maintenance is the general term for cleaning, stabilizing and extending the useful life of industrial process baths. These may include wash baths, degreasing baths, rinse baths and pretreatment baths.
Wash bath maintenance specifically refers to the treatment of cleaning and degreasing fluids used in industrial parts cleaning systems.
In both cases, the objective is to remove contaminants, maintain fluid quality and reduce the need for complete bath replacement.
Quick explanation: Bath maintenance helps extend bath life, reduce fluid changes and maintain consistent cleaning quality in industrial parts cleaning.
Why is bath maintenance important in industrial parts cleaning?
In industrial parts cleaning, the quality of the cleaning result depends directly on the condition of the wash bath. If the fluid becomes excessively contaminated, components can no longer be cleaned reliably.
This is particularly relevant for companies operating in:
- Metalworking and metal processing
- Automotive manufacturing
- Mechanical engineering
- Paint pretreatment
- Heat treatment
- Aviation and MRO
- Surface treatment
- General industrial manufacturing
The more consistently the cleaning bath is maintained, the more reliable the cleaning process remains.
Benefits for operators
- More consistent component cleanliness
- Fewer unplanned bath changes
- Lower disposal volumes
- Fewer production interruptions
- More predictable maintenance requirements
- Reduced water and chemical consumption
- Greater process reliability

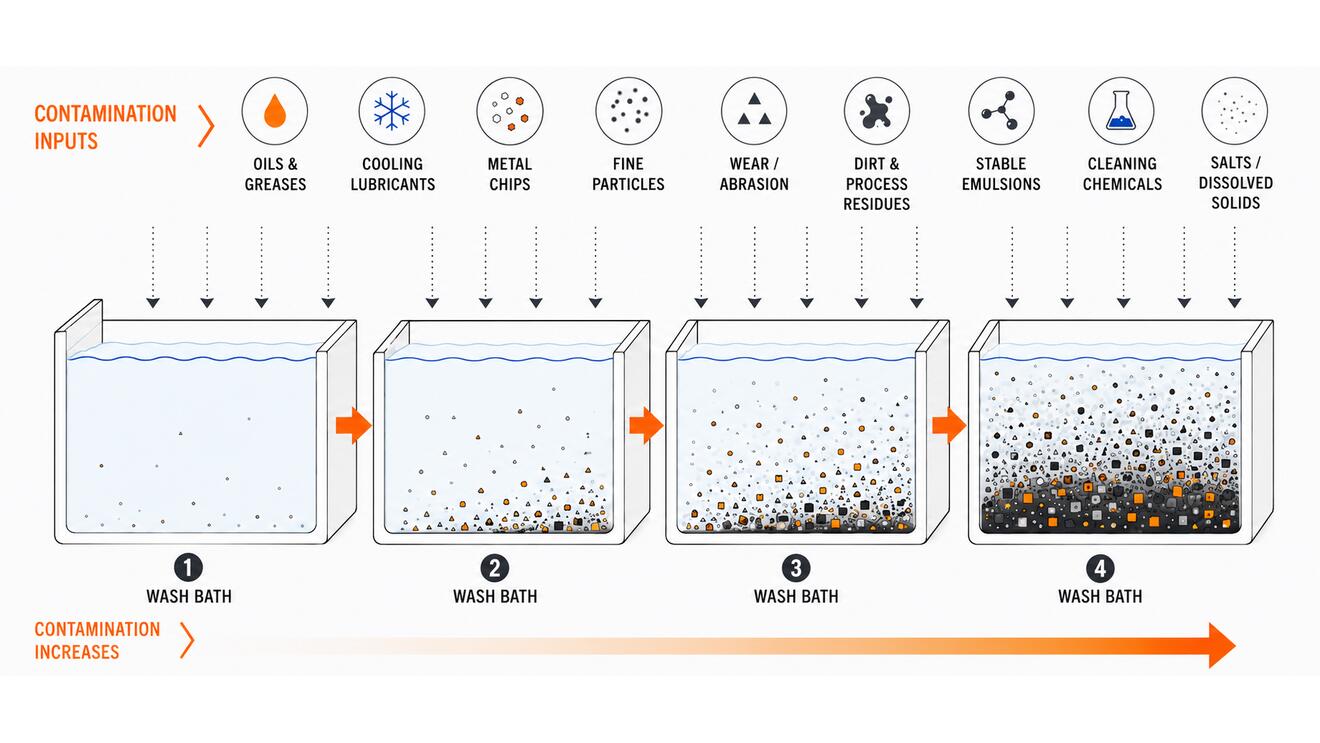

Why do wash and degreasing baths become contaminated?
During the cleaning process, contamination is transferred from the components into the cleaning fluid. The level of contamination increases with every production batch.
Typical contaminants include:
- Oils and greases
- Coolants and metalworking fluids
- Metal chips
- Fine particles
- Abrasion residues
- Dirt and process residues
- Stable emulsions
- Cleaning chemicals
- Salts and dissolved substances
These contaminants accumulate in the wash bath and change the properties of the fluid. As a result, cleaning performance can gradually decline.

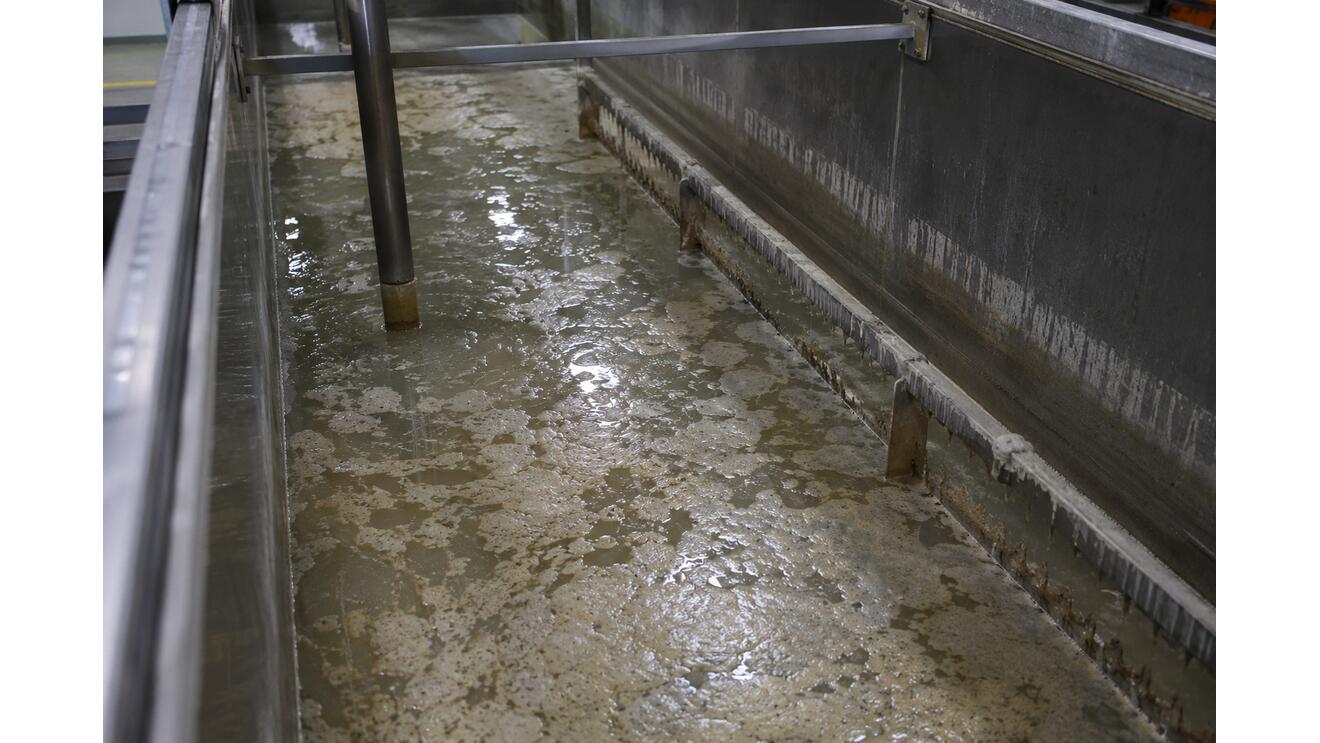

What happens without continuous bath maintenance?
Without suitable bath maintenance, wash bath quality deteriorates during operation. The fluid becomes increasingly contaminated and loses cleaning performance.
Typical consequences
- Declining component cleanliness
- Inconsistent cleaning results
- Increased reject rates
- More rework
- More frequent bath changes
- Longer production downtime
- Rising disposal costs
- Increased chemical consumption
- Higher fresh water demand
- Greater load on downstream wastewater treatment
The result: Reduced process stability and increasing cost pressure.
What are the objectives of industrial bath maintenance?
Industrial bath maintenance is more than a cleaning measure.
It is an important part of process reliability, cost efficiency and resource-efficient production.
Technical objectives
- Maintain consistent cleaning quality
- Remove oils, greases, particles and emulsions
- Stabilize the cleaning fluid
- Protect the cleaning system
- Remove accumulated contaminants in a controlled manner
Economic objectives
- Extend wash bath life
- Reduce the number of bath changes
- Lower disposal volumes
- Reduce production downtime
- Decrease water and chemical consumption
- Improve the predictability of operating costs
Sustainability objectives
- Reduce wastewater volumes
- Lower fresh water demand
- Use existing process fluids for longer
- Improve resource efficiency
- Support the recirculation of cleaning fluids
Which technologies are used for bath maintenance?
The appropriate treatment technology depends on the process fluid, contamination, bath volume, required fluid quality and operating conditions. In many applications, several technologies are combined.
| Technology |
|
Objective |
|---|---|---|
| Tramp oil separation | Free oils on wash baths and process fluids | Remove non-emulsified oils |
| Bag filters and belt filters | Particles, chips and suspended solids | Mechanical prefiltration |
| Mobile suction and filtration units | Flexible cleaning of machines, tanks and containers | Extract, filter and maintain process fluids |
| Ultrafiltration | Oils, greases, fine particles and stable emulsions | Continuous bath maintenance and return of treted fluids |
| Evaporator Technology | Contaminated residual streams and concentrates |
Reduce wastewater volumes and concentrate residual substances |
| Peripheral modules | Tanks, pumps, dosing systems, pH adjustment and controls | Integrate the treatment system into the overall process |
Important: Effective bath maintenance rarely relies on one technology alone. The decisive factor is a treatment concept that matches the fluid and the production process.
When is ultrafiltration suitable for industrial bath maintenance?
Ultrafiltration is particularly suitable when wash or degreasing baths are contaminated with oils, greases, fine particles and stable emulsions.
During ultrafiltration, the contaminated cleaning fluid is passed over ceramic membranes. The membranes retain and concentrate contaminants. Depending on the application and quality requirements, the treated fluid can be returned to the process.
Ultrafiltration is particularly suitable for:
- Frequent bath changes
- Declining cleaning quality
- Wash fluids contaminated with oils and greases
- Stable emulsions
- Fine particles
- High disposal costs
- Continuous cleaning processes
- Applications requiring stable bath quality
How does bath maintenance with ultrafiltration work?
During ultrafiltration, the contaminated wash fluid is removed from the process and passed over ceramic membranes under pressure.
The membrane separates the fluid into two streams:
- Permeate: The treated fluid that passes through the membrane
- Retentate: The concentrated contaminants retained by the membrane
Depending on the application, the permeate can be returned to the wash bath. The retentate contains the separated oils, greases, particles and emulsified components and is removed from the process in a controlled manner.
Process sequence
- The contaminated cleaning fluid is removed from the wash bath.
- The fluid is filtered through ceramic membranes.
- The treated permeate is returned to the process.
- The concentrated retentate is discharged.
- The membranes are cleaned automatically, depending on the system design.
This allows bath maintenance to operate alongside the production process without unnecessarily interrupting parts cleaning.
Why are ceramic membranes important for industrial wash baths?
Industrial wash and degreasing baths place demanding requirements on filtration technology. Temperature, chemicals, pressure, oils, emulsions and particle contamination can quickly push conventional filter systems to their limits.
For this reason, MKR ultrafiltration systems use ceramic membranes. They are robust and suitable for demanding industrial fluids and changing process conditions.
Advantages of ceramic membranes
- High chemical resistance
- High temperature resistance
- High pressure stability
- Long service life
- Good cleanability
- Suitable for heavily contaminated industrial fluids
- Low maintenance requirements
- Stable operation under demanding conditions
Ceramic membranes enable reliable bath maintenance for industrial wash and degreasing baths, even when contamination levels and operating conditions change.
What are the benefits of industrial bath maintenance with MKR?
MKR does not consider bath maintenance as an isolated process. The complete cleaning, fluid and wastewater cycle is evaluated.
Depending on the application, a treatment solution may combine ultrafiltration, mobile fluid maintenance, tramp oil separation,
mechanical filtration, tanks, pump stations, dosing technology and evaporation systems.
Longer wash bath life
Fewer bath changes
More consistent cleaning quality
Lower disposal volumes
Reduced chemical consumption
Lower fresh water demand
Fewer production interruptions
Greater process reliability
Integration into existing cleaning systems
MKR solutions for bath and wash bath maintenance
MKR offers different technologies and modules for cleaning, treating and stabilizing industrial wash baths and process fluids.
Relevant MKR technologies

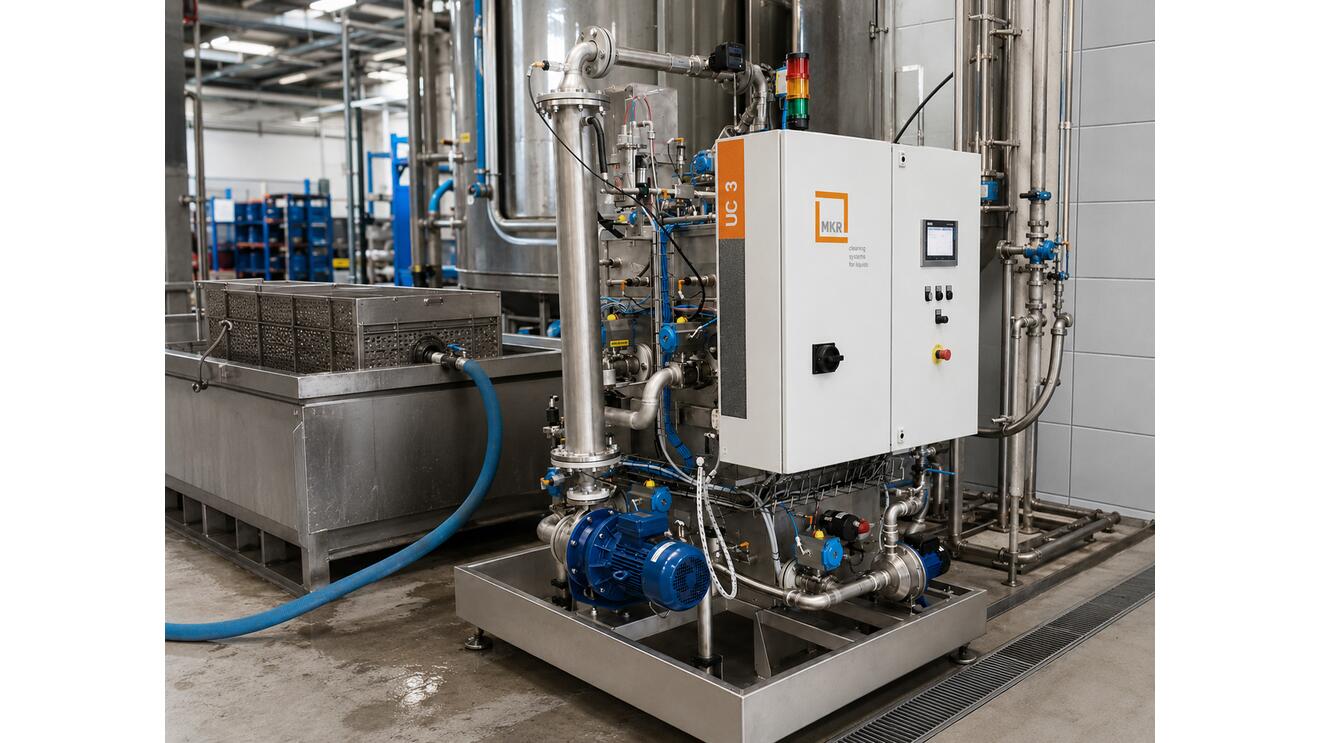

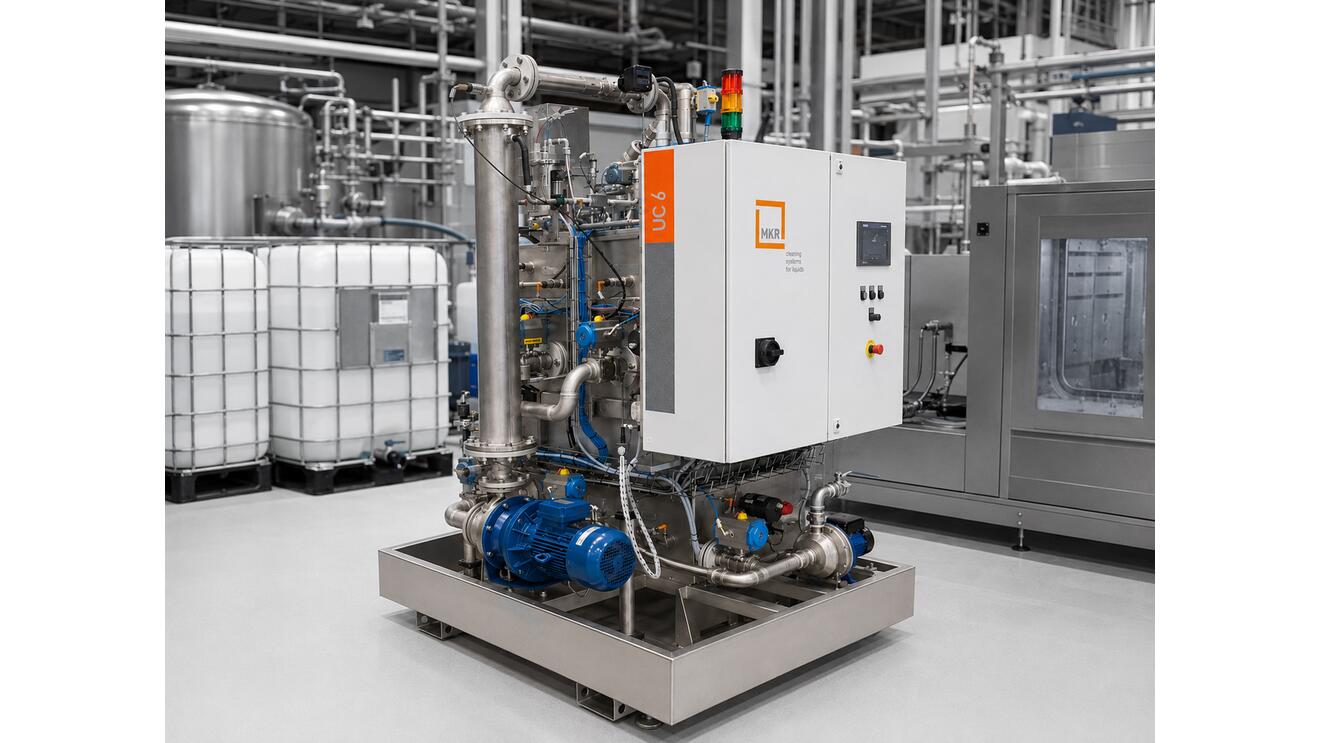

- UC series: Ultrafiltration systems with ceramic membranes
- Tramp oil separators
- Mobile suction and filtration units
- Bag filters and belt filters
- Tanks and pump stations
- Dosing technology and pH adjustment

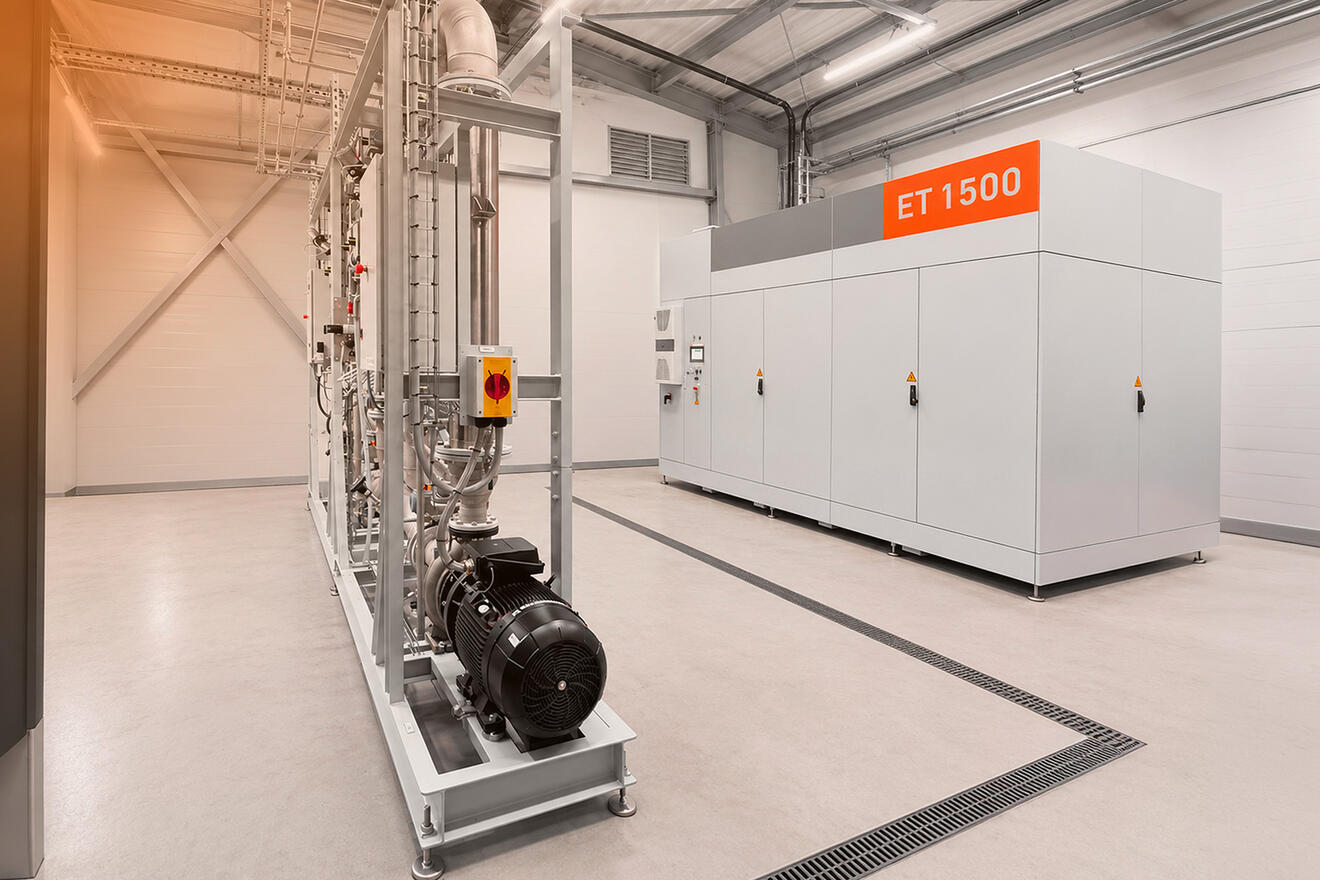

- ET series for industrial wastewater reduction
- ET MaXx ZLD for further concentrate reduction
- Modular peripherals for process integration
The MKR approach
MKR supplies more than individual treatment units. We develop complete process solutions based on the fluid, flow rate, required treatment quality and existing production process.
From the initial fluid analysis and process evaluation to engineering, commissioning and service, all relevant system components are coordinated as part of one complete solution.
Have your application assessed
Would you like to extend the life of your wash or degreasing baths, reduce bath changes or stabilize your industrial cleaning process?
MKR supports you in evaluating your application – from fluid analysis and technical system design to the appropriate solution for wash bath maintenance, process water treatment and wastewater reduction.
Contact us to discuss your application.
