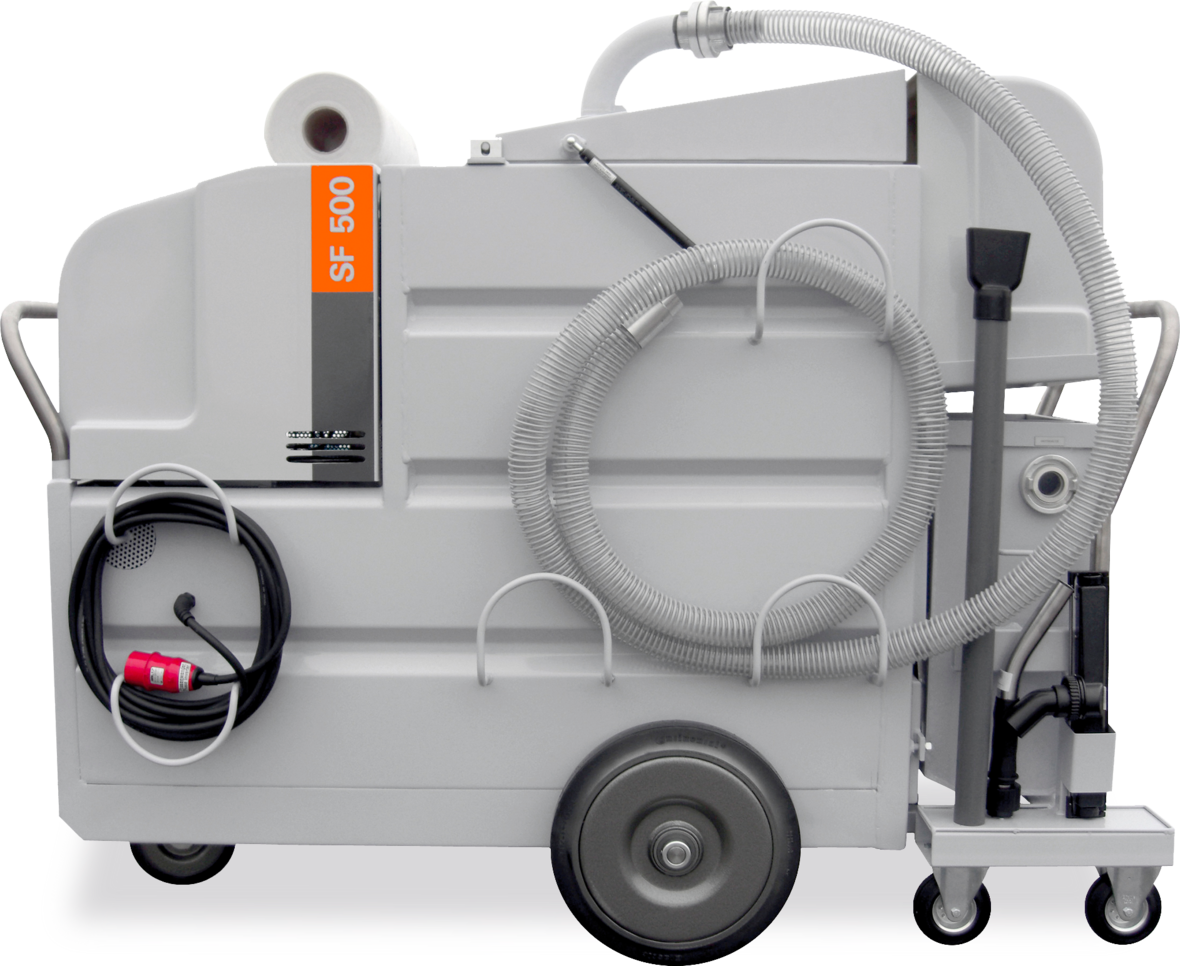

SF 500

Performance characteristics

Capacity 500 litre
Filtration by means of filter nonwoven
Suction capacity 250 l/min
High-pressure (HP) unit
Mechanical "tramp oil stopper"

Advantages

  • Perfect emulsion maintenance for individually filled machines
  • Emulsion change can be performed in very short time
  • Can be used for metalworking fluids or cutting-machining oils
  • 4 functions in one machine:
    • Extraction of the complete contents
    • Filtering of the liquid
    • Cleaning of the emulsion tank and machine interior with the help of the HP lance

Options

  • Cleaning opening at the rear 420x150 mm
  • CSE wheels, wide tyres
  • Drawbar
  • Electric drive with battery and charger
  • Special cleaning hose
  • Special colour
Article number 100248
Measurements and weight
Empty weight 420 kg
Length 2,000 mm
Width 800 mm
Height 1,600 mm
Power
Suction power 250 l/min
Electrical
Electrical connection 7/16 kW/A
Further values
Parts in contact with media manufactured in stainless steel No
Suction height 2 m
Max. temperature < 50 °C
pH value 5 - 9,5 pH
Noise level 75 dB (A)
