Perfect cooling
lubricant and washing
bath care

more

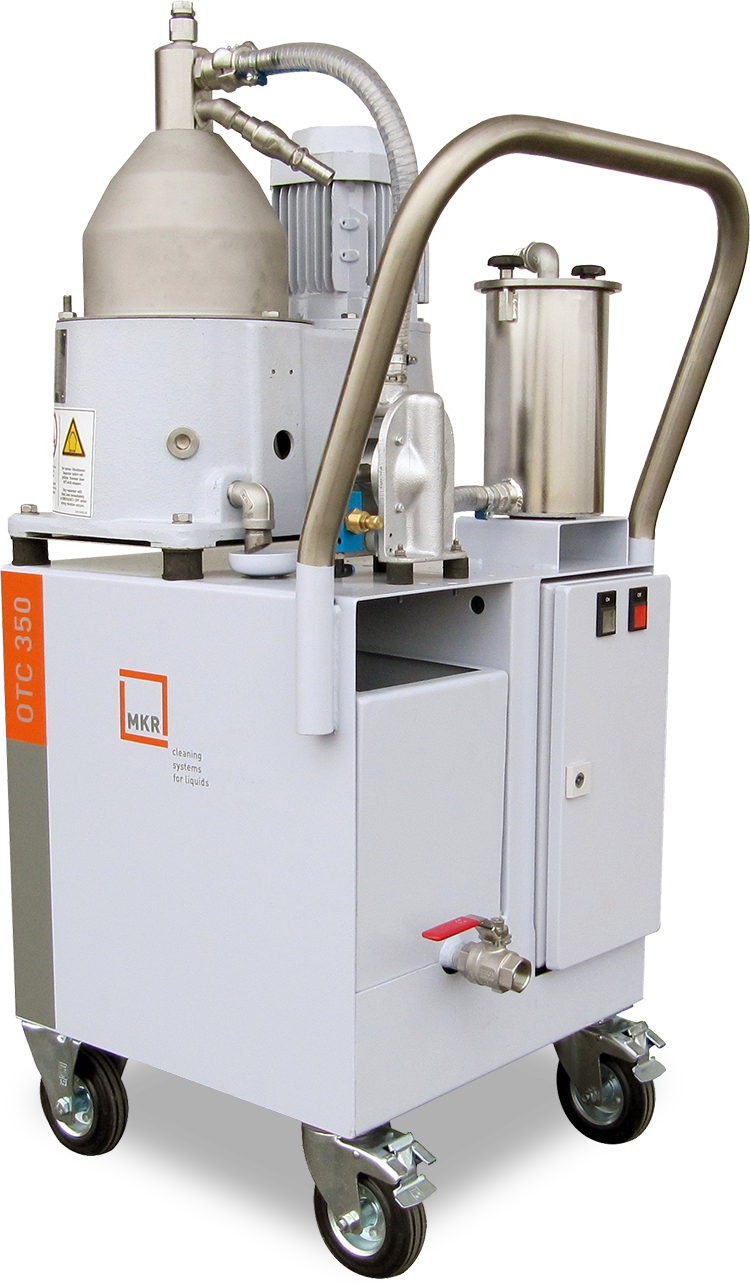

OTC 350 VA

Performance characteristics

Output 300 – 600 l/h
Prefilter 350µm
Manual sludge removal
Level-monitored tramp oil tank
Controllable flow

Suitable for media with a pH-value from 4.5 to 14 and temperature from 20 to 85 °C

Fed by means of pneumatic diaphragm pum

Advantages

  • User-friendly handling
  • Cleaning without machine at standstill
  • Exact separation of tramp oils
  • Very fine cleaning › 2 µm
  • Without filter aids

Options

  • Solenoid valve
  • Extraction system Ø 100 mm, with telescope 65/100 stroke
  • Extraction system Ø 100 mm, with telescope 110/180 stroke
  • Free-floating extraction system
  • Special colour
Article number 100601
Measurements and weight
Empty weight 150 kg
Length 620 mm
Width 600 mm
Height 1,250 mm
Power
Throughput 300-600 l/h
Electrical
3-phase, with N and PE 50 Hz
Electrical connection 1/4 kW/A
Further values
Parts in contact with media manufactured in stainless steel No
Suction height 3 m
Max. temperature 20 - 85 °C
Separation particle size > 2 µm
pH value 4,5 - 11 pH
Noise level 78 dB (A)
