Perfect cooling
lubricant and washing
bath care

more

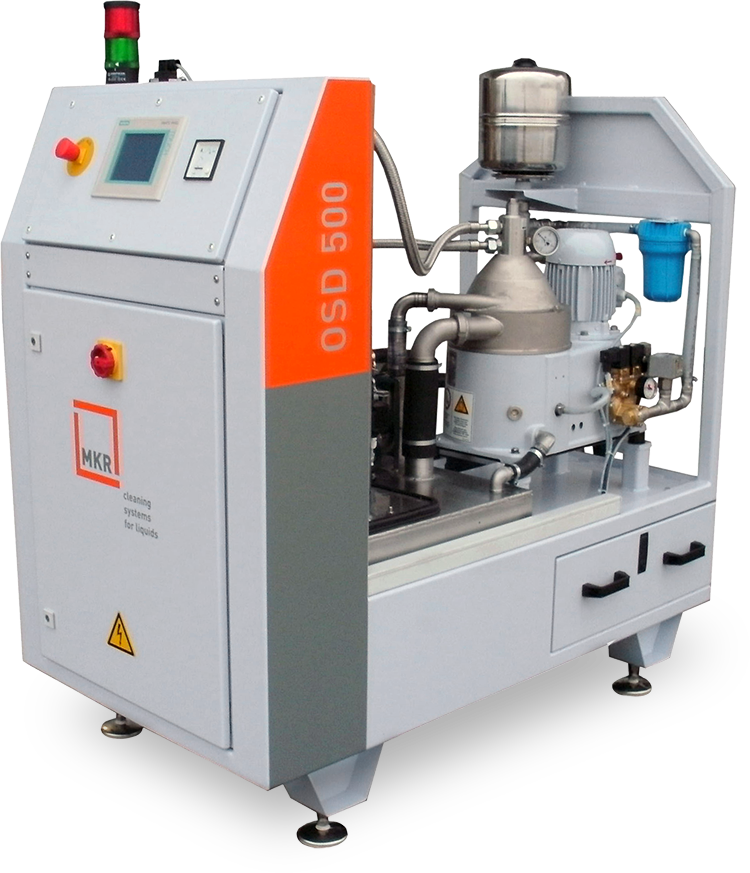

OSE 500

Performance characteristics

Output 300 – 600 l/h
Prefilter 350µm
Automatic sludge removal
Operation via Siemens touchpanel
Fully automatic operation
Controllable flow

Advantages

  • User-friendly handling
  • Cleaning without machine at standstill
  • Exact separation of tramp oils
  • Very fine cleaning › 2 µm
  • Without filter aids

Options

  • Extraction system Ø 100 mm, with telescope 65/100 stroke
  • Extraction system Ø 100 mm, with telescope 110/180 stroke
  • Free-floating extraction system
  • Special colour
Article number 100615
Measurements and weight
Empty weight 275 kg
Length 1,420 mm
Width 680 mm
Height 1,500 mm
Power
Throughput 300-500 l/h
Electrical
3-phase, with N and PE 50 Hz
Electrical connection 2/6 kW/A
Further values
Parts in contact with media manufactured in stainless steel No
Suction height 3 m
Control water quality (unit German hardness) 6-10 °dH
Water pressure p > 3,5 bar
Max. temperature 20 - 65 °C
Separation particle size > 2 µm
pH value 5,5 - 9,5 pH
Noise level 75 dB (A)
