Perfect cooling
lubricant and washing
bath care

more

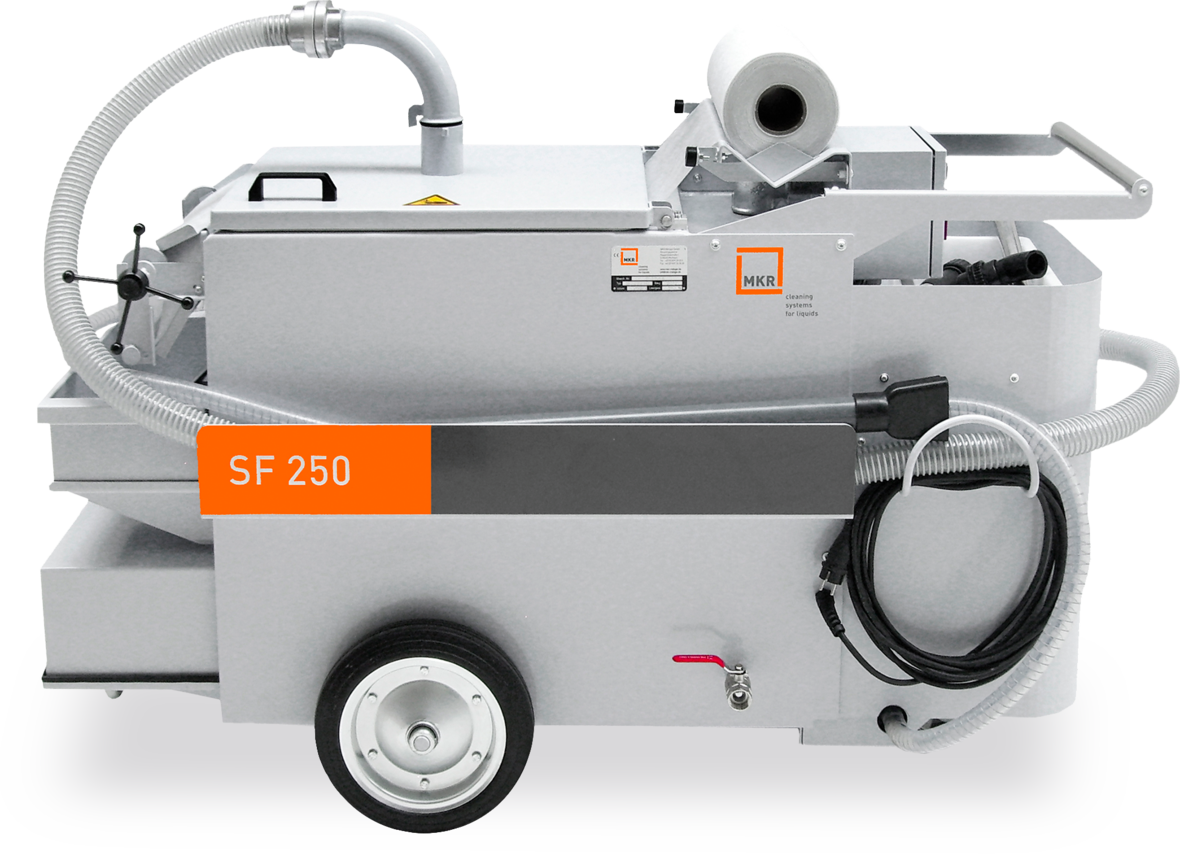

SF 250

Performance characteristics

Capacity 250 litre
Filtration by means of filter nonwoven
Suction capacity 150 l/min
Compact design
Operating voltage 230V

Advantages

  • Perfect emulsion maintenance for individually filled machines
  • Emulsion change can be performed in very short time
  • Can be used for metalworking fluids or cutting-machining oils
  • 3 functions in one machine:
    • Extraction of the entire contents, including swarf and grinding sludge
    • Filtering of the liquid
    • Cleaning of the emulsion tank and spaces inside of the machine

Options

  • Stainless steel basket 200 µm VA
  • Special colour
Article number 928045
Measurements and weight
Empty weight 310 kg
Length 1,750 mm
Width 725 mm
Height 1,250 mm
Power
Suction power 125 l/min
Electrical
Electrical connection 2,5/16 kW/A
Further values
Parts in contact with media manufactured in stainless steel No
Suction height 2 m
Max. temperature < 30 °C
pH value 5 - 9,5 pH
Noise level 73 dB (A)
