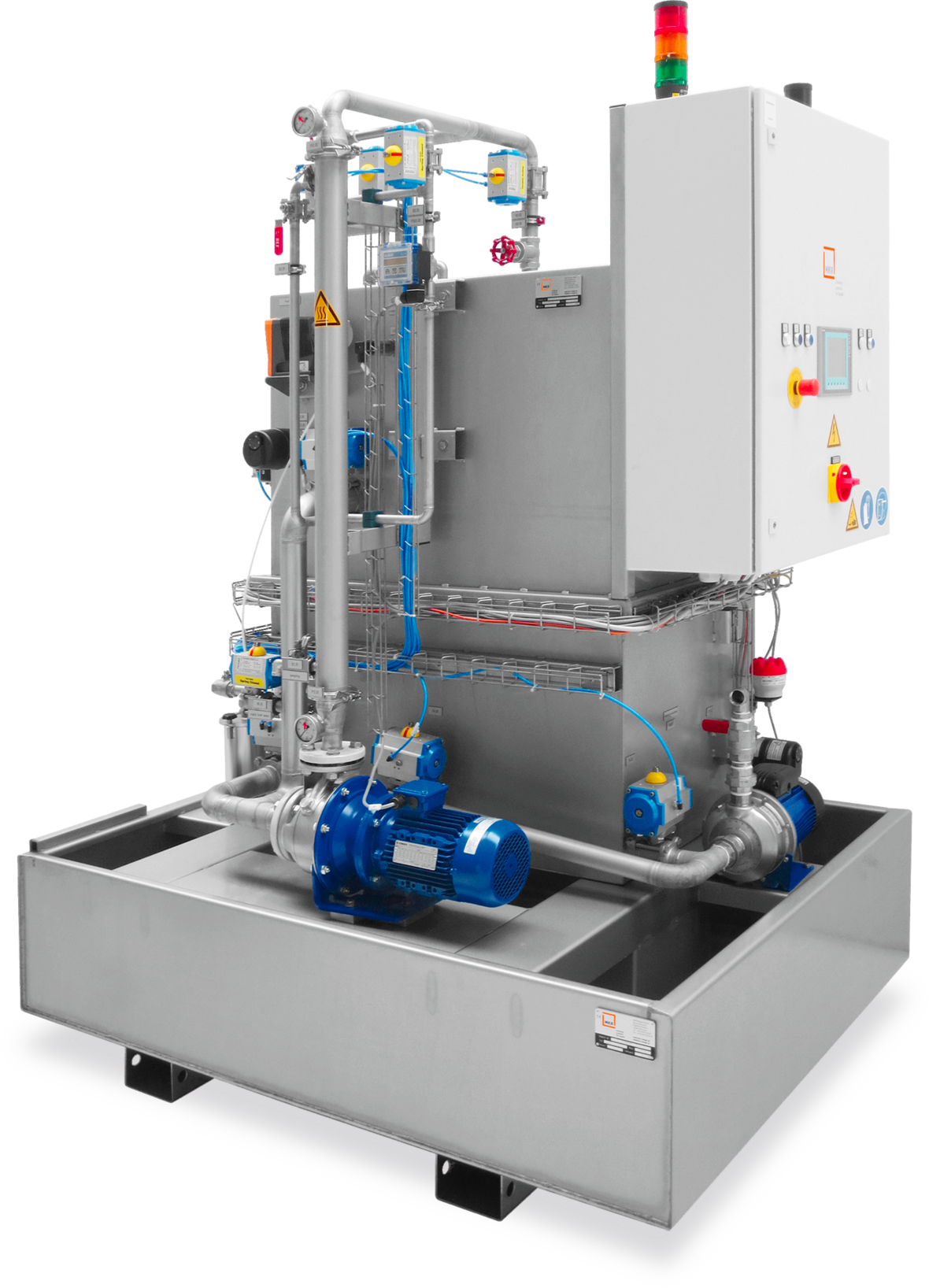

UC 1

Performance characteristics

Working tank approx. 500 l/h
Rinsing tank approx 50 l/h

Advantages

  • Extension of washing tank service life for part cleaning systems
  • Separation of ultrafine particles, emulsions and oils from all aqueous liquids
  • Extension of service life of pretreatment units
  • Versions for manual/automatic operation

Options

  • Automatic membrane cleaning for ultrafiltration UC 1
  • Safety spillage tray for ultrafiltration UC 1
Article number 100512
Measurements and weight
Empty weight 650 kg
Length 1,700 mm
Width 1,350 mm
Height 2,150 mm
Power
Throughput 50 - 300 l/h
Electrical
3-phase, with N and PE 50 Hz
Electrical connection 8/16 kW/A
Further values
Parts in contact with media manufactured in stainless steel No
Suction height 2 m
Max. temperature 65 °C
pH value 4-13 pH
